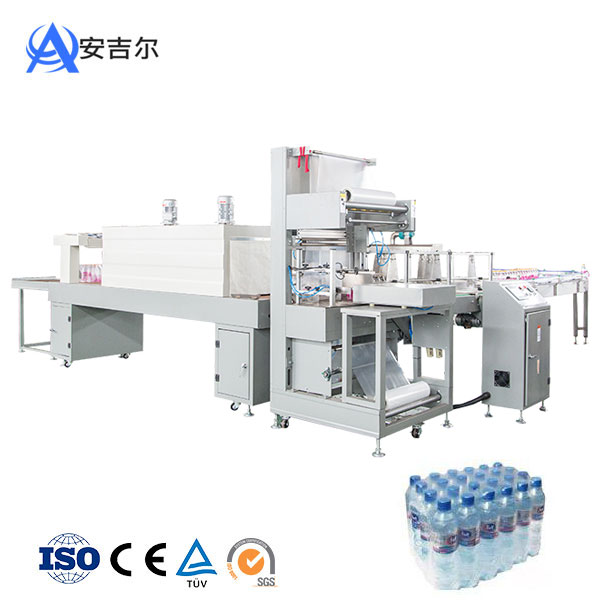

Automatic PE Film Shrink Packing Machine

Automatic PE Film Shrink Packing Machine is suitable for wrapping pop-cans, bottles, etc, both with bottom-tray and without bottom-tray, working with PE shrink tunnels. The machine adopts the Germany advanced technology and international famous brands, which makes capability stable and using long-time.

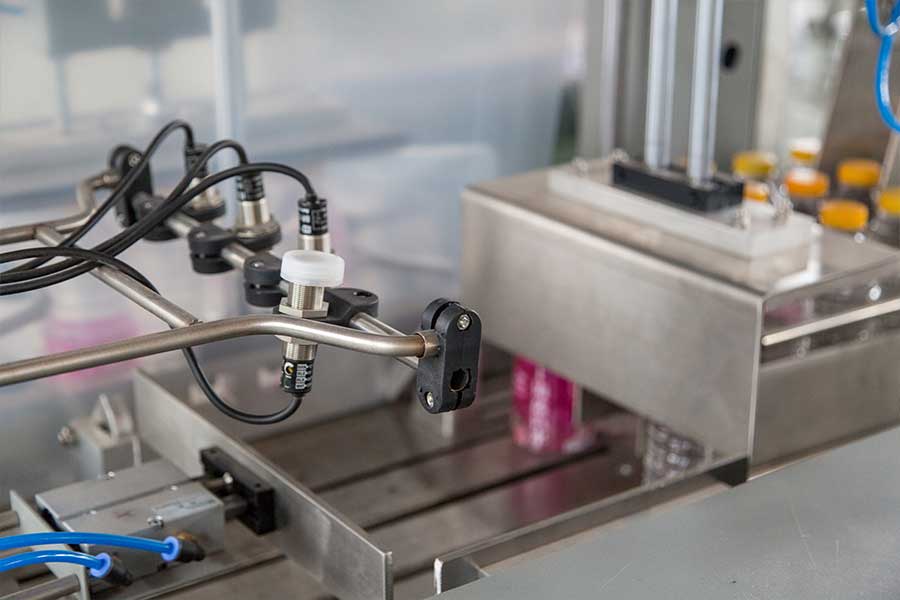

  • 1.Up and down magnetic switch prevent sealing mistakes, and protect the operators.

    2.The input position is adjustable, base on the size of products packaged.

    3.Schneider PLC, Schneider AC contractor, and intelligent temperature controller performs stable.

    4.Large power conveyer motor, with stepless speed regulating, ensures smooth feeding.

    5.Up and down large power fan system ensures the excellent effect of shrinking in one time.

    6.Super cooling system cools the packing and makes the figuration perfectly.

    7.The size of tunnel can be customized as your request.

    Model

    MB-400

    Dimension of the Equipment

    L5050*W3300*H2100mm

    The largest dimension of the wrappage

    L600*W400*H350mm

    Material of shrink film

    PE

    Thickness of shrink film

    0.03-0.15mm

    The highest temperature of the shrink fumace

    160-260degree

    The maximum Production per minute

    0-12 packages/min

    Power

    20KW

    Actual Power

    15Kw/hour

    Weight

    1.2T

    Pressure of air

    0.6-0.8Mpa



  • Automatic PE Film Shrink Packing Machine  is suitable for wrapping pop-cans, bottles, etc, both with bottom-tray and without bottom-tray, working with PE shrink tunnels. The machine adopts the Germany advanced technology and international famous brands, which makes capability stable and using long-time.

    It is specially designed for high speed packing requirement of bottled drinking water (pure water, beverage, juice, milk ect.) When conveying the bottles, it can arrange and film wrap the bottles automatically, which save the time and improve the working efficiency. PLC control, automatic work processing. Constant temperature cutting blaes, which surface sprayed by Teflon, with the advantage of stable sealing. Touch screen is used to ensure easy operation. Suit for different bottle size and packaging type without tray packing. This type of shrink wrapping machine is your best choice for middle capacity, which is easy operation and maintance.

  • Q1: do you have reference project?

    A1: We have reference projects in most countries if we get the permission of the customers who have brought the machines from us, we can tell you their contact information, you can go to visit their factory.

    Q2: Do you have agents and after- service stations?

    A2: so far, we have agents in Yemen , Kenya, Uganda ,India and Dubai , welcome to join us.

    Q3: Do you provide customized service?

    A3: We can design the machine according to your requirements , material  , power ,filling type. The kinds of bottles and so on, at same time, we will give you our professional suggestions, as you know, we have been in this industry for many years.

    Q4: What's your guarantee or the warranty of quality if we buy your machines?

    A4: We offer you high-quality machines with 1 year guarantee and supply life-long technical support.

    Q5: how long time for installation?

    A5: According machines order, we will send you one or two engineers to your plant, it will take about 10 days to 30 days.

  • Nearly 15 years, Angel Machinery has provided bottling & packing equipments of liquid solutions to companies all over the world water bottling line, juice filling tine, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery.

    All your different requirements. Angel Machinery can always offer you the most professional solutions and turnkey project.

  • Angel Machinery is…

    *Standard workshop of total 8,000 square meters.

    Different types of processing units. Such as water jet cutter, plasma cutter, CNC machine from Taiwan chevalier & korea Daewoo, ensure the precision of parts.

    *International certification, National Certificate of equipment verification, and more than 30 invention patents

    Verification Certificate of equipment:ISO9001:2001:CE Certificate, SGS, COC, TUV.

    National certificate of equipment vetification: standard organization of  Nigeria ,CNCA certificate logo trademark registration, etc.

    *The equipment will be tested and run for 24 hours before leaving the factory to ensure the smooth working of water pipeline and pneumatic electrical and mechanical stability.

    *Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.

    *The engineers are experienced ,we can produce different products with

    different capacities and work out reasonable flow chart as customers requirements to save space.

    *Professional installation team, who can speak fluent English can help customers make benefits in a shortest time.

    We control the quality of our equipment by manufacturing and machining ourselves.Pay attention to each assembly detail and our experienced technicians monitor each key point efficiently during assembly to ensure that the performance and the appearance of each product be perfect.

    Our customer

    To help our customers build an ideal factory. With efficient cost control, we have found the right balance with our customers: Diversify the production range, high-class packaging forms.Meanwhile market competitiveness has been improved because of efficient operation mode of equipments
