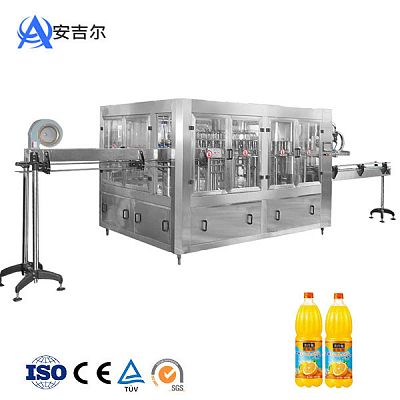

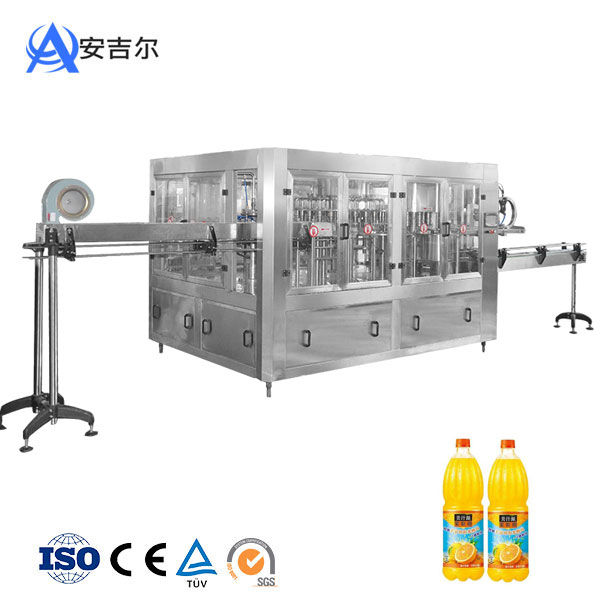

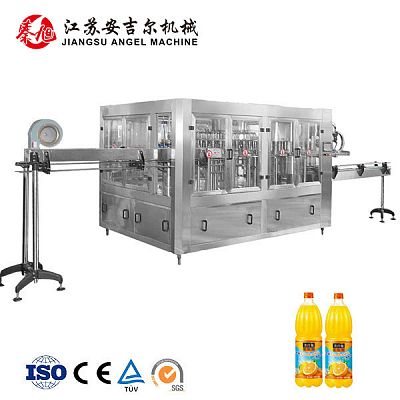

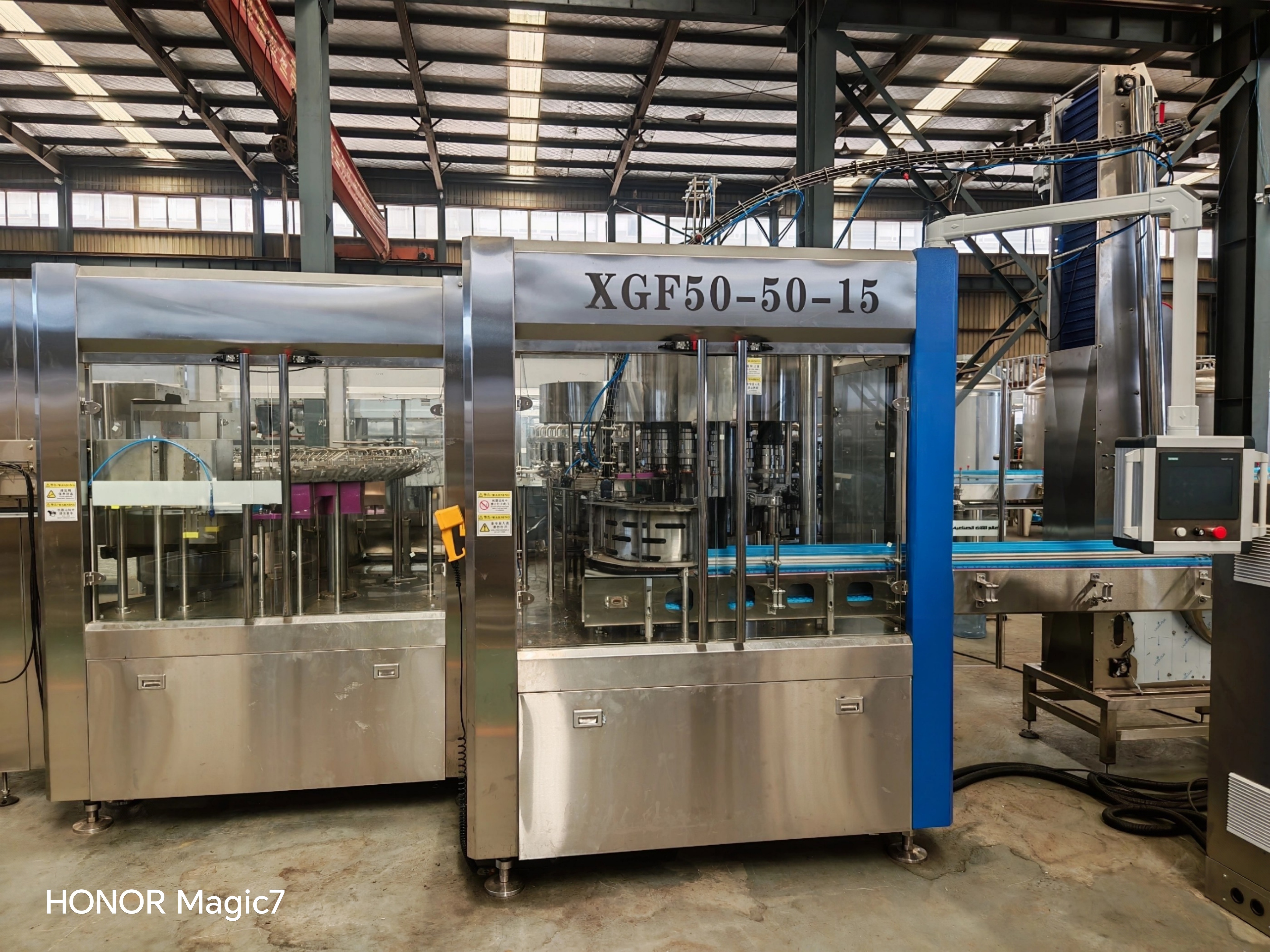

Automatic Orange Juice Filling Machine 8000BPH

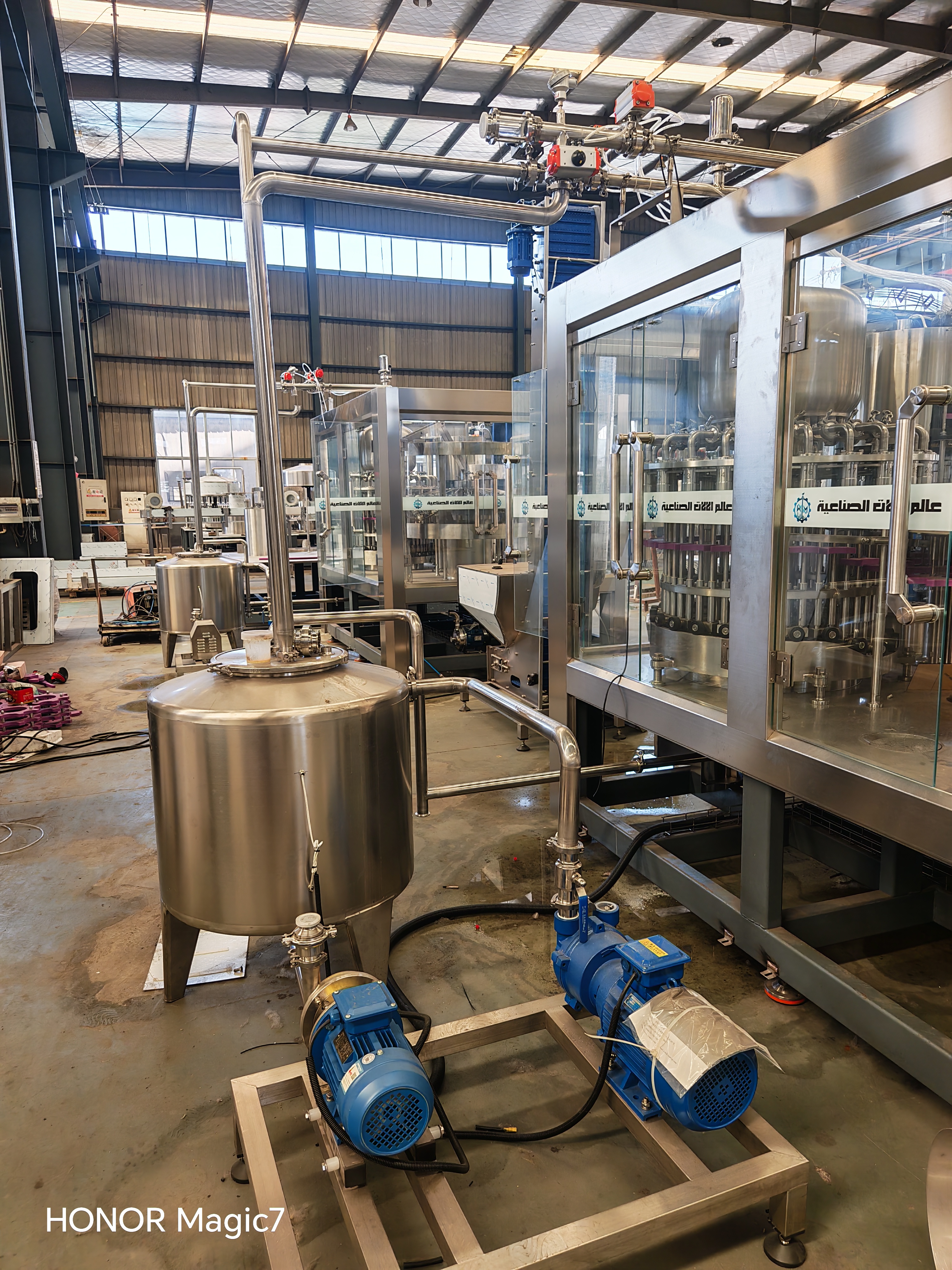

RCGF series 3-in-1 set of machine is mainly used in the beverage filling process. The machine combines washing, filling and capping with complete automation, suitable for filling juice and tea beverage. With temperature controller, it can also conduct thermal filling. It is used for all kinds of bottles. The bottle neck hanging technology makes the process of changing bottles easily by only adapting the height of conveyor chain. The filling process adopts hot filling technology with water-supplying system under constant pressure, which makes filling process faster and more stable. Compared with other equipment of same kind, this machine with a better quality and thus enjoys a high ratio of function against price. The hot filling type machine works with balanced tank and vacuum system.

  • Automatic orange juice filling machine 8000BPH  RCGF 24-24-8 technical introduction and working principle:

    1). 1.Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.

    2). Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough..

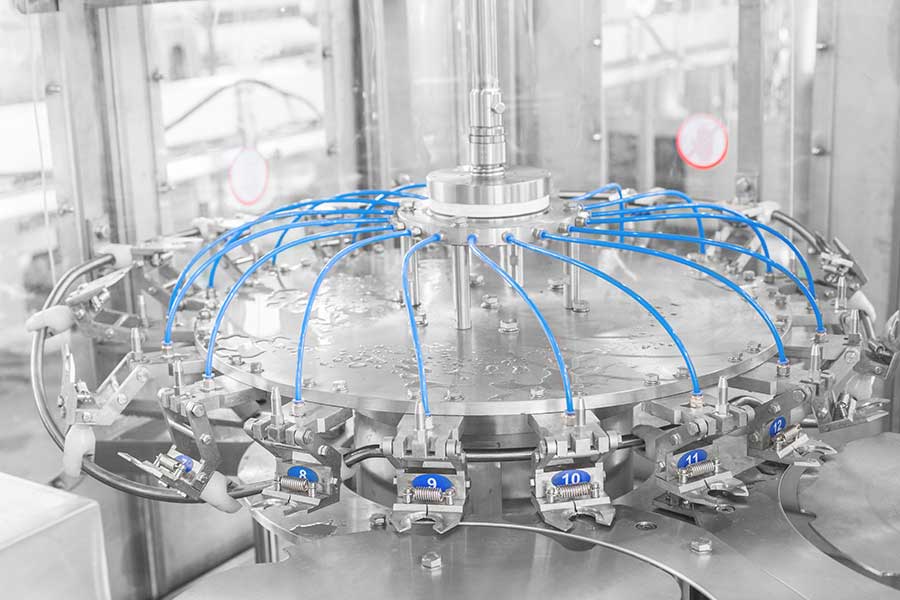

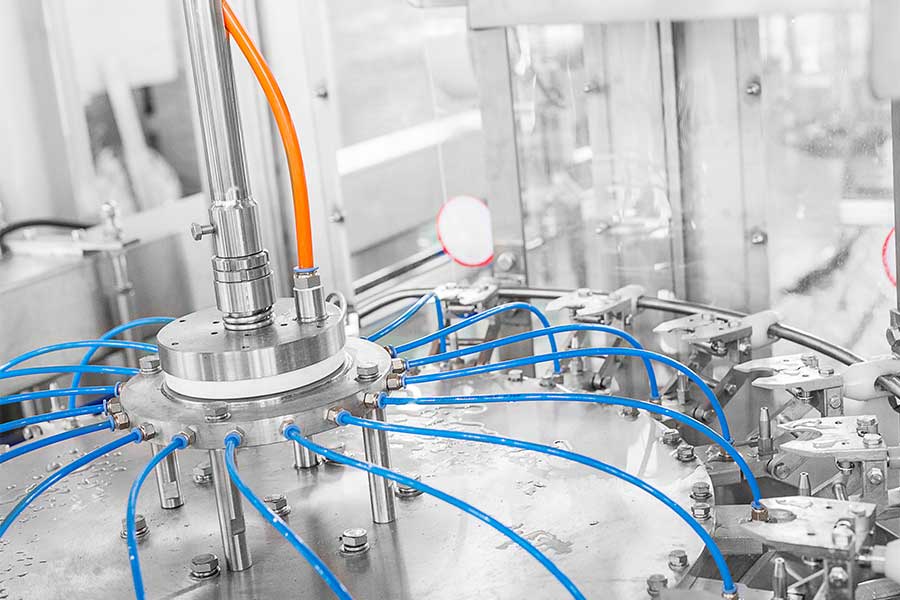

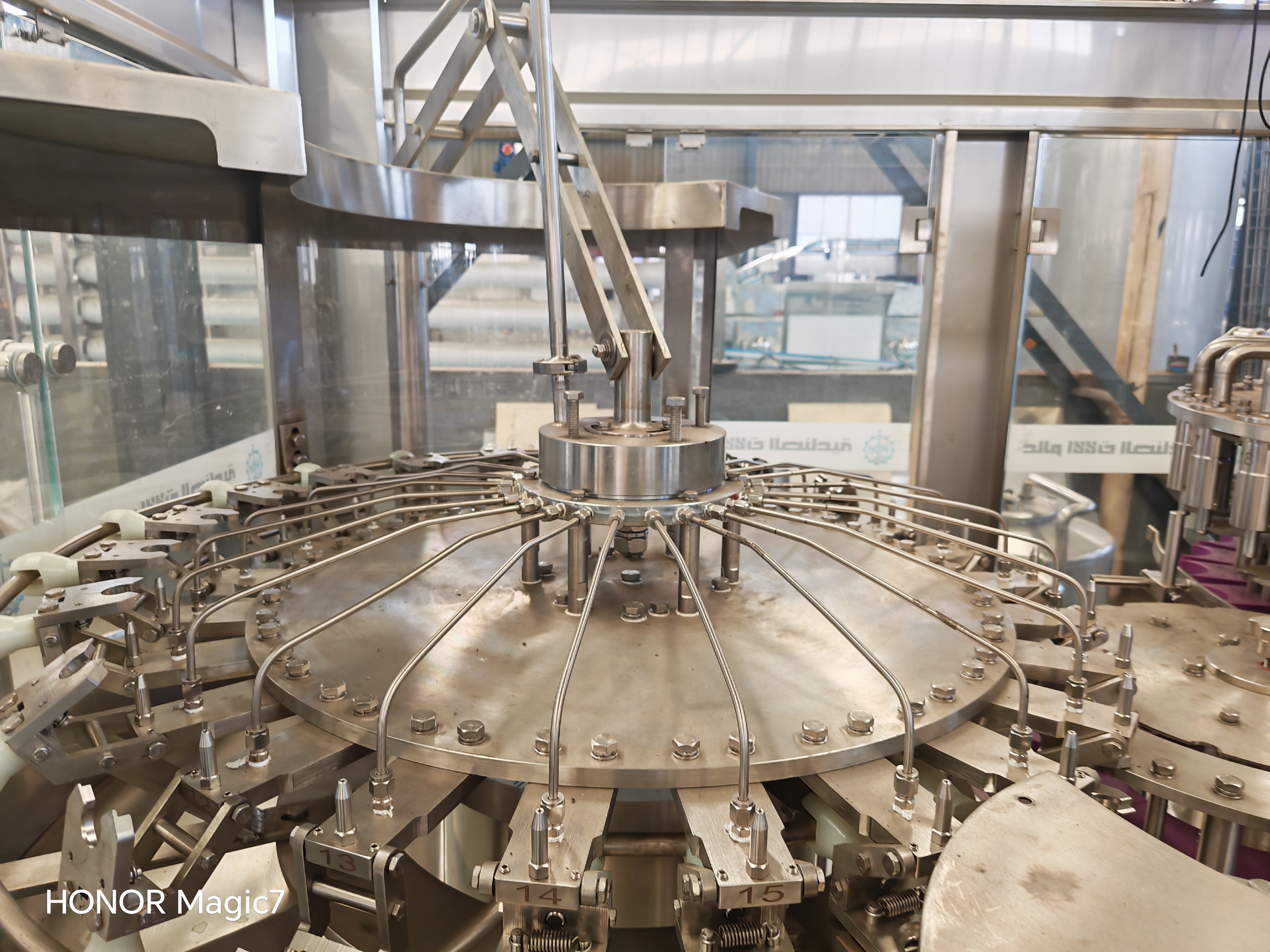

    3). The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

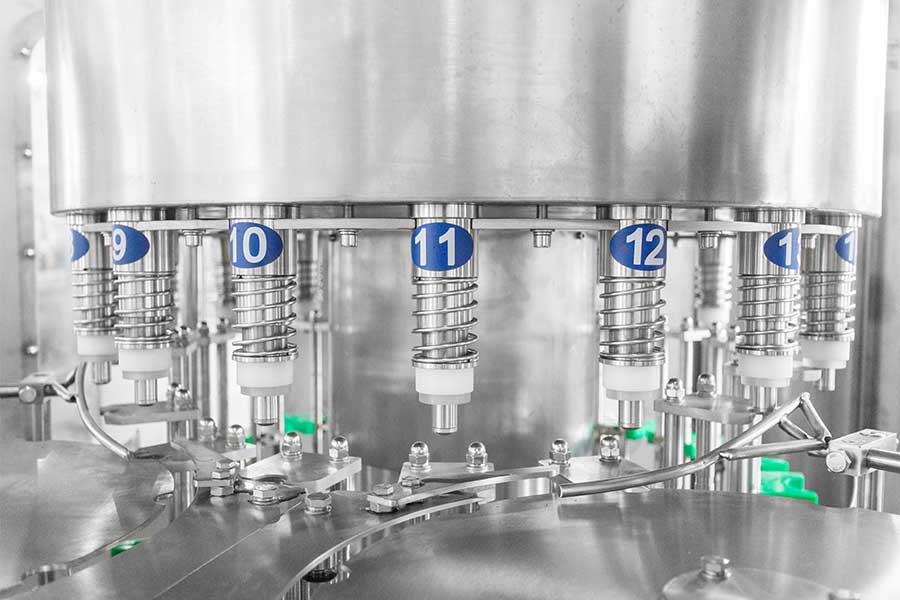

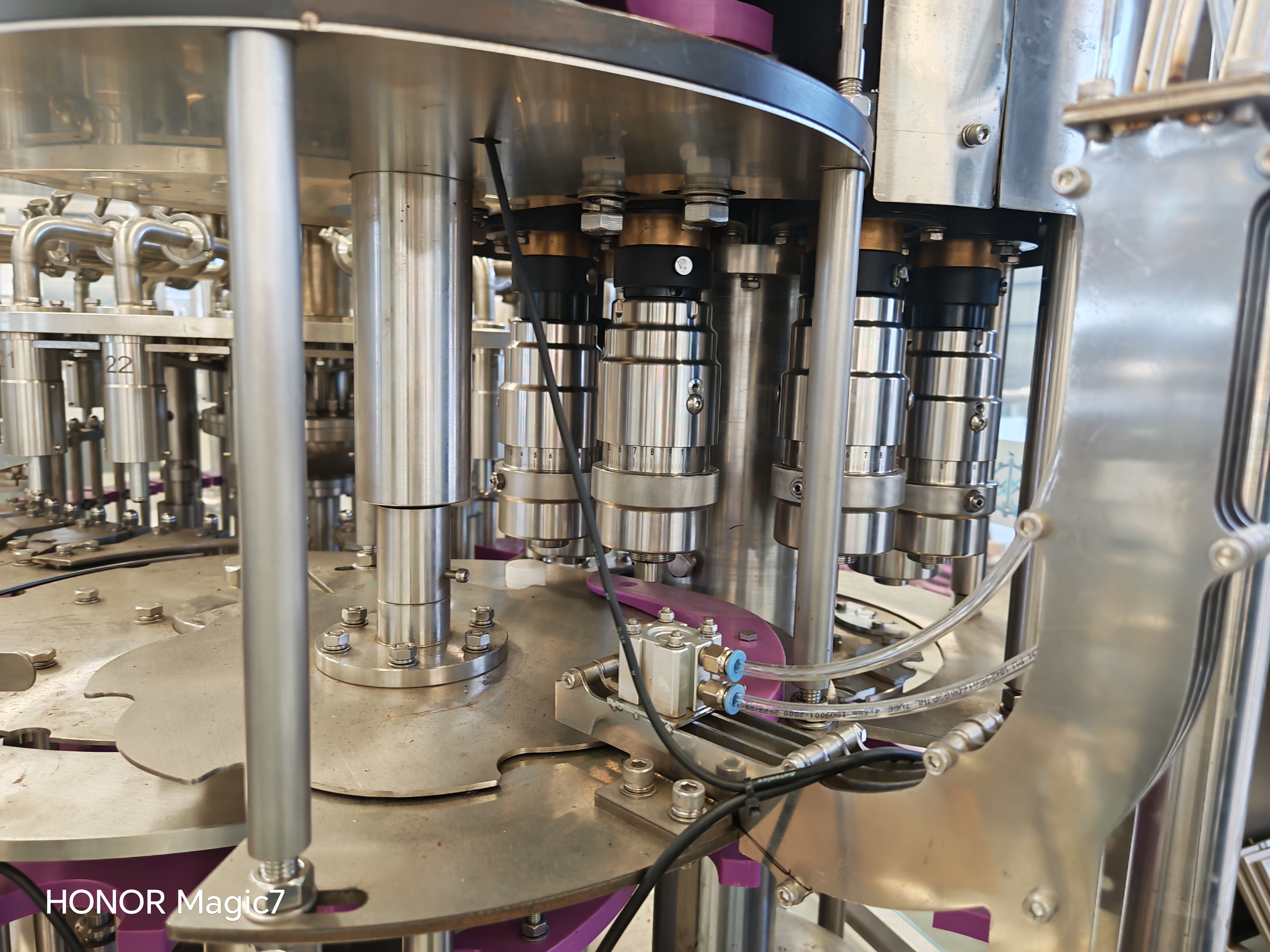

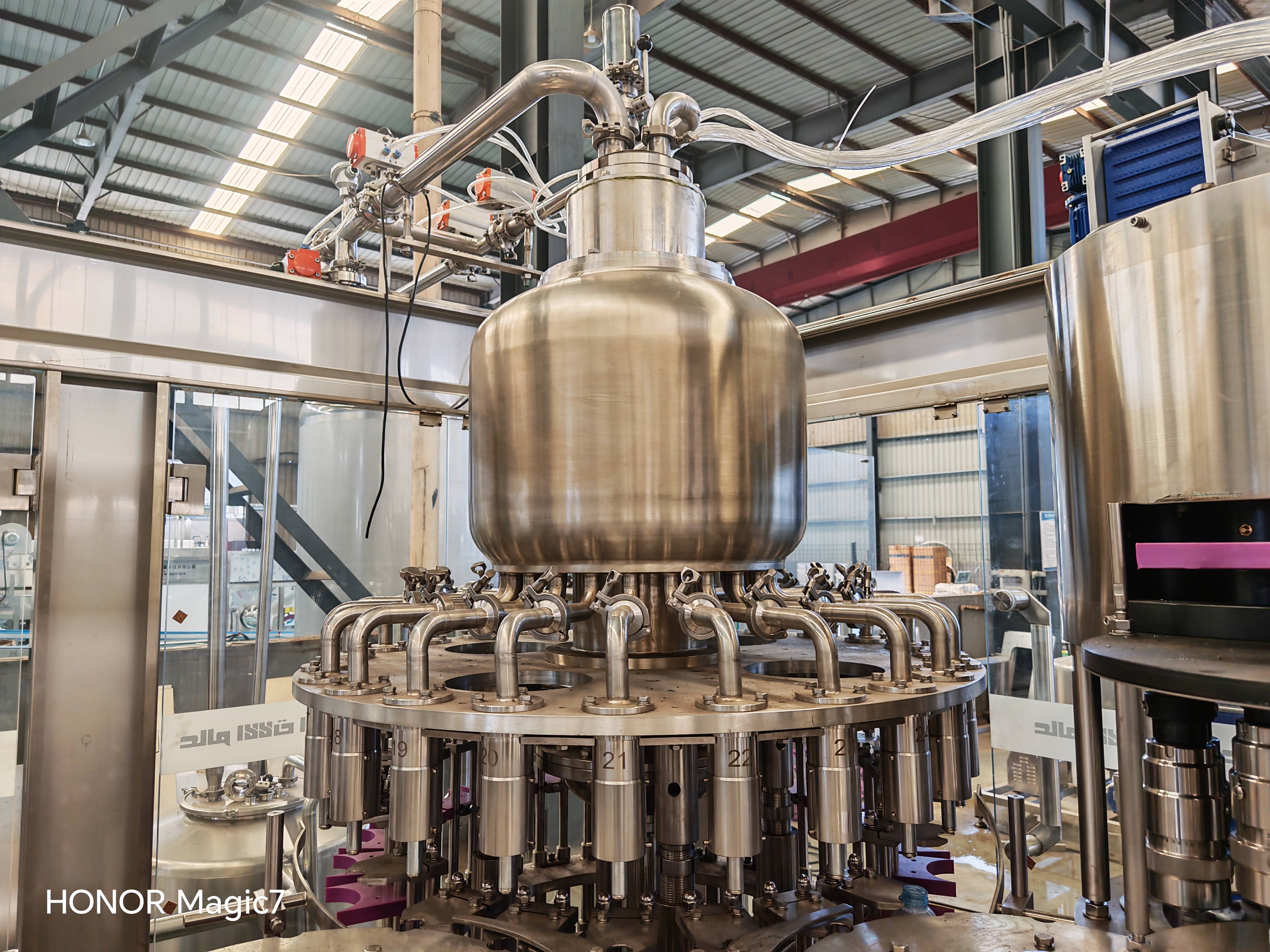

    4). High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.

    5). Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

    6). Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan\'s Mitsubishi, France Schneider, Siemens.


    Model

    RCGF18-18-6

    RCGF24-24-8

    RCGF32-32-12

    RCGF40-40-12

    RCGF50-50-12

    Capacity

    5000

    8000

    12000

    16000

    20000

    Bottle shape

    round or square

    PET bottle(mm)

    (bottle diameter): ф50-ф110mm(Height):160-320mm

    Cap

    PE screw cap or crown cap

    Filling precision

    ≤±5%

    Filling pressure(Mpa)

    0.15-0.35

    0.15-0.35

    0.15-0.35

    0.15-0.35

    0.15-0.35

    Rinsing pressure(Mpa)

    0.2-0.25

    0.2-0.25

    0.2-0.25

    0.2-0.25

    0.2-0.25

    Total Power(KW)

    4.4

    5.2

    6.2

    7.8

    9.4

    Overall size(mm)

    2800×2150×2300

    3100×2450×2300

    3800×2800×2500

    4100×3000×2500

    5000×3770×2750

    Weight(Kg)

    4500

    6500

    7500

    8500

    9500



  • Automatic orange juice filling machine

    Juice Filling Machine suitable for filling different kinds juice and tea beverage. With temperature controller, it can also conduct thermal filling. It is used for all kinds of bottles. The bottle neck hanging technology makes the process of changing bottles easily by only adapting the height of conveyor chain.  The filling speed will not be affected.

  • Q1: do you have reference project?

    A1: We have reference projects in most countries if we get the permission of the customers who have brought the machines from us, we can tell you their contact information, you can go to visit their factory.

    Q2: Do you have agents and after- service stations?

    A2: so far, we have agents in Yemen , Kenya, Uganda ,India and Dubai , welcome to join us.

    Q3: Do you provide customized service?

    A3: We can design the machine according to your requirements , material  , power ,filling type. The kinds of bottles and so on, at same time, we will give you our professional suggestions, as you know, we have been in this industry for many years.

    Q4: What's your guarantee or the warranty of quality if we buy your machines?

    A4: We offer you high-quality machines with 1 year guarantee and supply life-long technical support.

    Q5: how long time for installation?

    A5: According machines order, we will send you one or two engineers to your plant, it will take about 10 days to 30 days.

  • Nearly 15 years, Angel Machinery has provided bottling & packing equipments of liquid solutions to companies all over the world water bottling line, juice filling tine, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery.

    All your different requirements. Angel Machinery can always offer you the most professional solutions and turnkey project.

  • Angel Machinery is…

    *Standard workshop of total 8,000 square meters.

    Different types of processing units. Such as water jet cutter, plasma cutter, CNC machine from Taiwan chevalier & korea Daewoo, ensure the precision of parts.

    *International certification, National Certificate of equipment verification, and more than 30 invention patents

    Verification Certificate of equipment:ISO9001:2001:CE Certificate, SGS, COC, TUV.

    National certificate of equipment vetification: standard organization of  Nigeria ,CNCA certificate logo trademark registration, etc.

    *The equipment will be tested and run for 24 hours before leaving the factory to ensure the smooth working of water pipeline and pneumatic electrical and mechanical stability.

    *Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.

    *The engineers are experienced ,we can produce different products with

    different capacities and work out reasonable flow chart as customers requirements to save space.

    *Professional installation team, who can speak fluent English can help customers make benefits in a shortest time.

    We control the quality of our equipment by manufacturing and machining ourselves.Pay attention to each assembly detail and our experienced technicians monitor each key point efficiently during assembly to ensure that the performance and the appearance of each product be perfect.

    Our customer

    To help our customers build an ideal factory. With efficient cost control, we have found the right balance with our customers: Diversify the production range, high-class packaging forms.Meanwhile market competitiveness has been improved because of efficient operation mode of equipments
