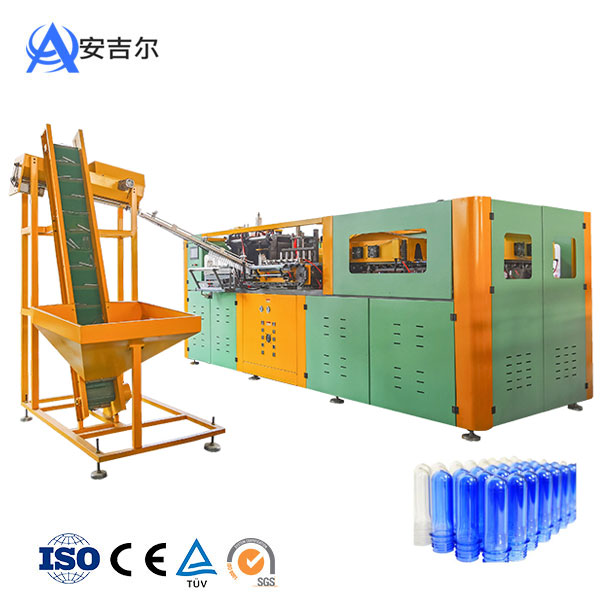

6000BPH Automatic 6 Cavities Blowing Machine For 500mL

Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle and hot fill bottle etc.

  • 1. Electrical

    1.1 PLC will protect and control the blowing procedure of the machine

    1.2 Operation platform directly controls the machine by EV human-computer interface which will display the production situation intuitively, the parameter can be properly adjusted in the interface according to the blowing technology.

    1.3 The human-computer interface has production situation, control parameter and alarm and other interfaces

    1.4 Air throttles are fitted at both ends of cylinder, which will make the whole machine more stable

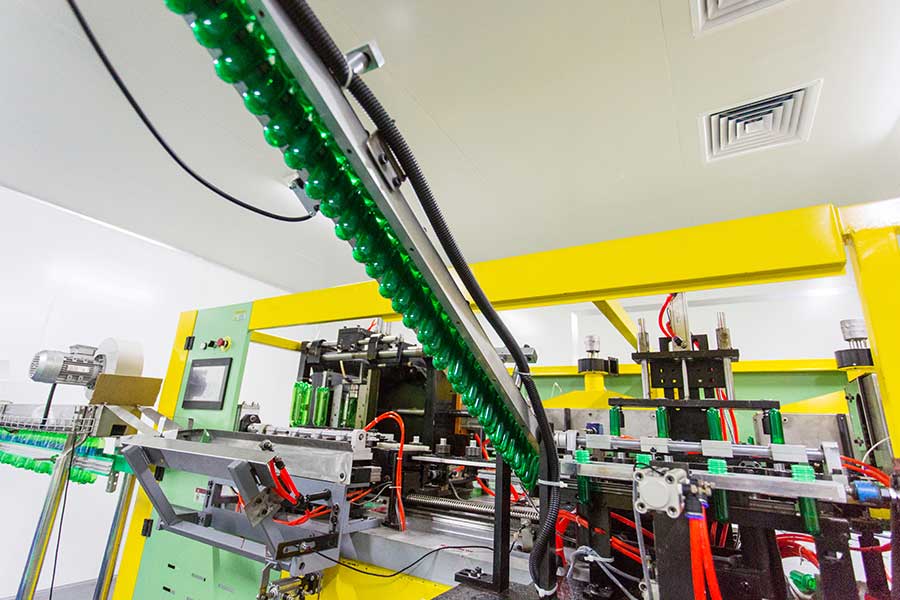

    2. Preform scrambler

    2.1 The stepless speed regulating of preform loading is accomplished

    2.2 Simple structure, widely application

    3. Heating part

    3.1 Stale infrared ray heating system has 4 heating zone, each of them are controlled saperately

    3.2 Hangzhou Xizi module and intelligent control module accomplish the gaol of heating every part of preform through adjusting the voltage of infrared ray lamps

    3.3 Induced air device overcomes the convection of air, better for stabling heating environment, improving heating effeciency

    3.4 Air cooling and water cooling devices avoid the neck from being heated to disformed

    4. Blowing machine mold frame

    4.1 The mold frame system is driven by action cylinder will move in the guiding rail accurately and stablely

    4.2 Quick mold closing and pneumatic high pressure mold locking devices efficiently solve the mechanical mold locking problems such as mold expand and big mold closing line and etc.

    5. Locating device

    5.1 The whole machine's transmission is driven by the same power, so the synchronism is perfect

    5.2 Mechanical locating design leads to simple structure and stable running situation

    5.3 Imported common standard components are used in the chain guiding rail system, so the system is stable and easy to maintain

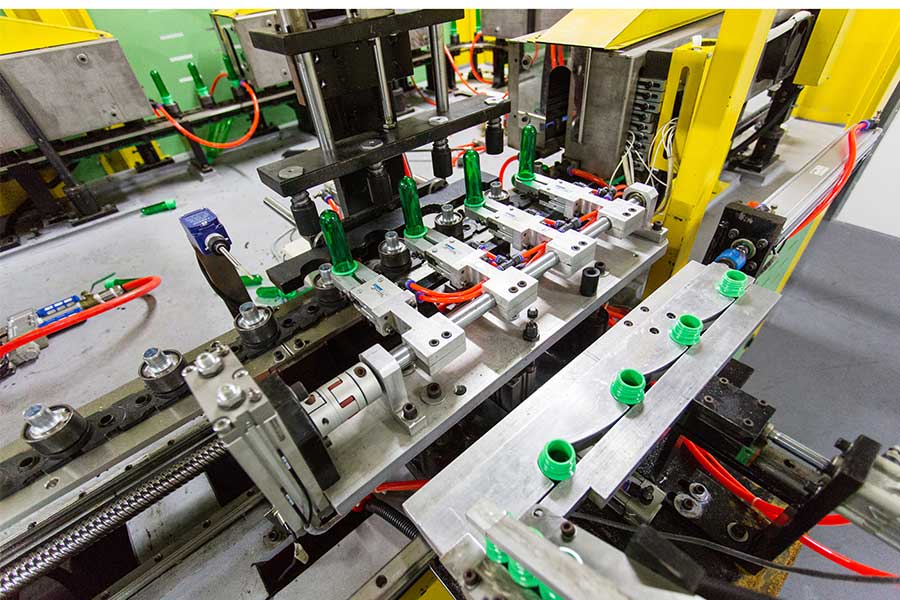

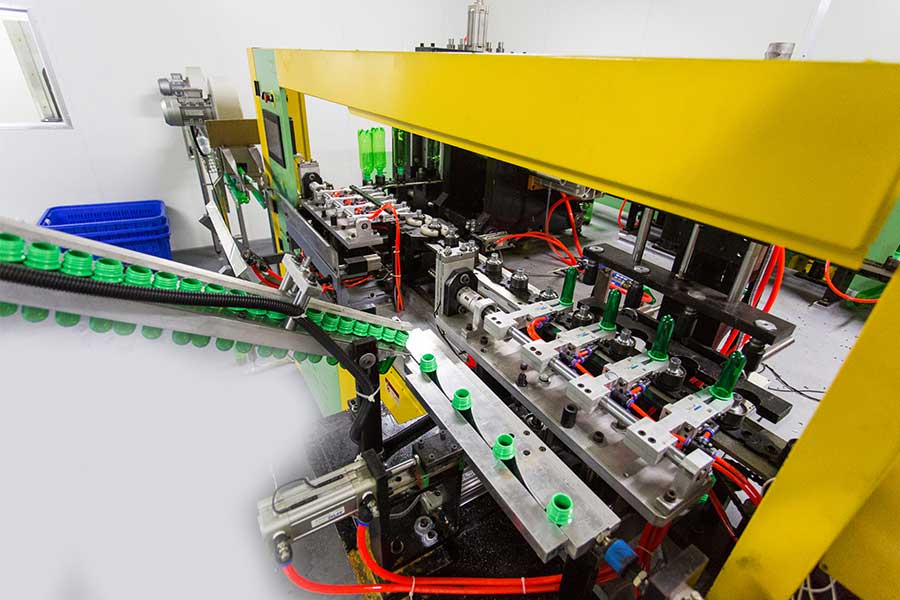

    6. Transfer arm

    6.1 Preform transfer arm is driven by cylinder to turn oven and down the preforms and bottles with the features of good synchronism

    Model ItemAGL-A2 AGL-A4AGL-A6 AGL-A8
    Productivity Depend on bottle design 1800-2000 PCS/H 3200-4000 PCS/H 4000-5500 PCS/H 7000-8000 PCS/H
    Product typeVolume
    Body diameter
    Height
    Neck diameter
    0.1-2.0L
    ≤100mm
    ≤310mm
    38mm
    0.1-2.0L
    ≤100mm
    ≤310mm
    38mm
    ≤1.5L
    ≤90mm
    ≤310mm
    28-38mm
    ≤1.5L
    ≤90mm
    ≤310mm
    28-38mm
    MouldCavity
    Mold thickeness
    Mold volume
    2
    240mm
    260*240*370mm
    4
    240mm
    510*240*360mm
    6
    240mm
    640*240*360mm
    8
    240mm
    780*240*360mm
    Main machine Power Electrical source power
    Rated power
    Really use power
    380V/220V
    50/60HZ 3Phase
    25kw
    6.5kw
    380V/220V
    50/60HZ 3Phase
    2549kw
    13kw
    380V/220V
    50/60HZ 3Phase
    73kw
    25kw
    380V/220V
    50/60HZ 3Phase
    100kw
    35kw
    Air system HP air compressor
    LP air compressor
    Air Tank
    Air dryer
    1.4m3/min 3.0Mpa
    1.0m3/min 1.0Mpa
    0.6m3 3.0Mpa
    1.0m3/min 3.0Mpa
    2.0m3/min 3.0Mpa
    1.6m3/min 1.0Mpa
    0.6m3 3.0Mpa
    2.0m3/min 3.0Mpa
    6.0m3/min 3.0Mpa
    2.0m3/min 1.0Mpa
    1.0m3 3.0Mpa
    6.0m3/min 3.0Mpa
    8.0m3/min 3.0Mpa
    2.0m3/min 1.0Mpa
    1.0m3 3.0Mpa
    8.0m3/min 3.0Mpa
    Cooling waterWater Chiller 3HP5HP8HP10HP
    MachineSize (L*W*H)
    Weight
    1900*1280*1930mm
    2000kg
    1900*1860*1930mm
    3600kg
    4100*1400*1800mm
    4500kg
    5600*1800*1930mm
    5600kg
    Preform unscrambler Size (L*W*H)
    Weight
    2000*950*2480mm
    250kg
    2000*950*2480mm
    250kg
    2000*950*2480mm
    250kg
    2000*950*2480mm
    250kg



  • Q1: do you have reference project?

    A1: We have reference projects in most countries if we get the permission of the customers who have brought the machines from us, we can tell you their contact information, you can go to visit their factory.

    Q2: Do you have agents and after- service stations?

    A2: so far, we have agents in Yemen , Kenya, Uganda ,India and Dubai , welcome to join us.

    Q3: Do you provide customized service?

    A3: We can design the machine according to your requirements , material  , power ,filling type. The kinds of bottles and so on, at same time, we will give you our professional suggestions, as you know, we have been in this industry for many years.

    Q4: What's your guarantee or the warranty of quality if we buy your machines?

    A4: We offer you high-quality machines with 1 year guarantee and supply life-long technical support.

    Q5: how long time for installation?

    A5: According machines order, we will send you one or two engineers to your plant, it will take about 10 days to 30 days.
