20,000BPH Carbonated Soft Drink Filling Machine

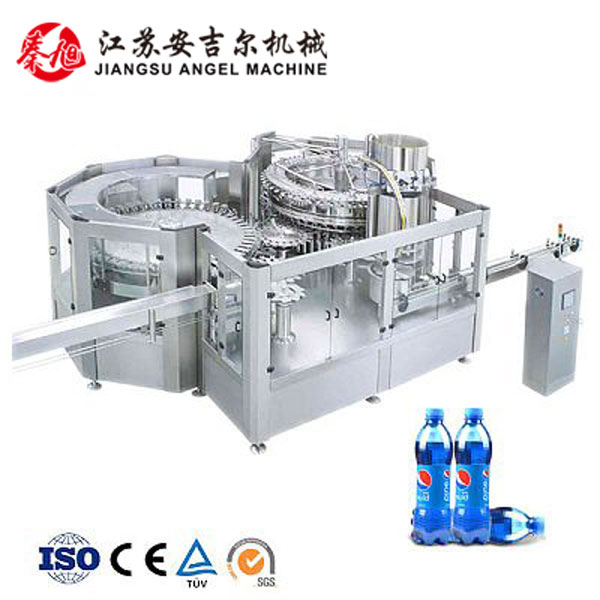

DCGF50-50-12 washing,filling capping 3in1 machine is mainly used in the Equal pressure filling operations. The three functions of bottle rinsing, filling and capping are composed in one body of the machine. The whole process is automatic. The machine is used in filling carbonated beverage in bottles made of polyester and plastics.The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. . Therefore the output and benefit of the machine is higher than the machines of the same specifications.

  • DCGF50-50-12 washing,filling capping 3in1 machine is mainly used in the Equal pressure filling operations. The three functions of bottle rinsing, filling and capping are composed in one body of the machine. The whole process is automatic. The machine is used in filling carbonated beverage in bottles made of polyester and plastics.The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles. . Therefore the output and benefit of the machine is higher than the machines of the same specifications. The advanced Mitsubishi programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably . It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity,it is the best choice for the beverage plant.

    Model

    DCGF14-12-6

    DCGF18-18-6

    DCGF24-24-6

    DCGF32-32-10

    DCGF40-40-12

    DCGF50-50-15

    DCGF60-60-15

    Production capa

    2000-3000

    3000-5000

    5000-7000

    7000-10000

    10000-15000

    16000-20000

    20000-24000

    Filling precision

    +5mm(Liquid Level)

    Filling pressureMpa

    0.4

    PET bottle specification(mm)

    (Bottle Diameter): ф50-ф115;(Height):160-320

    Suitable cap shape

    Plastic Screw Cap or Crown Cap

    Total power(kw)

    4

    5.2

    6.2

    6.2

    7.5

    11

    15

    Weight(kg)

    2500

    3500

    4500

    6000

    7200

    10000

    11500

    Overall dimensions(mm)

    2250×1650×2250

    2600×1965×2250

    2980×2200×2250

    3380×2200×2250

    4000×2250×2500

    5500×3500×2500

    6500×5500×2550



  • Q1: do you have reference project?

    A1: We have reference projects in most countries if we get the permission of the customers who have brought the machines from us, we can tell you their contact information, you can go to visit their factory.

    Q2: Do you have agents and after- service stations?

    A2: so far, we have agents in Yemen , Kenya, Uganda ,India and Dubai , welcome to join us.

    Q3: Do you provide customized service?

    A3: We can design the machine according to your requirements , material  , power ,filling type. The kinds of bottles and so on, at same time, we will give you our professional suggestions, as you know, we have been in this industry for many years.

    Q4: What's your guarantee or the warranty of quality if we buy your machines?

    A4: We offer you high-quality machines with 1 year guarantee and supply life-long technical support.

    Q5: how long time for installation?

    A5: According machines order, we will send you one or two engineers to your plant, it will take about 10 days to 30 days.

  • Nearly 15 years, Angel Machinery has provided bottling & packing equipments of liquid solutions to companies all over the world water bottling line, juice filling tine, carbonated soft drinks turnkey project, oil and soda water bottling line and labeling and packing machinery.

    All your different requirements. Angel Machinery can always offer you the most professional solutions and turnkey project.

  • Angel Machinery is…

    *Standard workshop of total 8,000 square meters.

    Different types of processing units. Such as water jet cutter, plasma cutter, CNC machine from Taiwan chevalier & korea Daewoo, ensure the precision of parts.

    *International certification, National Certificate of equipment verification, and more than 30 invention patents

    Verification Certificate of equipment:ISO9001:2001:CE Certificate, SGS, COC, TUV.

    National certificate of equipment vetification: standard organization of  Nigeria ,CNCA certificate logo trademark registration, etc.

    *The equipment will be tested and run for 24 hours before leaving the factory to ensure the smooth working of water pipeline and pneumatic electrical and mechanical stability.

    *Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.

    *The engineers are experienced ,we can produce different products with

    different capacities and work out reasonable flow chart as customers requirements to save space.

    *Professional installation team, who can speak fluent English can help customers make benefits in a shortest time.

    We control the quality of our equipment by manufacturing and machining ourselves.Pay attention to each assembly detail and our experienced technicians monitor each key point efficiently during assembly to ensure that the performance and the appearance of each product be perfect.

    Our customer

    To help our customers build an ideal factory. With efficient cost control, we have found the right balance with our customers: Diversify the production range, high-class packaging forms.Meanwhile market competitiveness has been improved because of efficient operation mode of equipments
