15000b/p High Speed Automatic PVC Label Shrinking Machine

Automatic Shrink Sleeve Labeling Machine: the whole machine is waterproof as well as rustless. Adjustable cutter head: uniquely cyclotron cut-off, double sided cutting edge with a long service life. Single positioning centre guide pillar: a more stable for label delivery. Synchronous bottle divider: a more stable transmission for bottle. Bottom set of label brush:a more precision for casting label. Label-controlling electric-eye shelf:

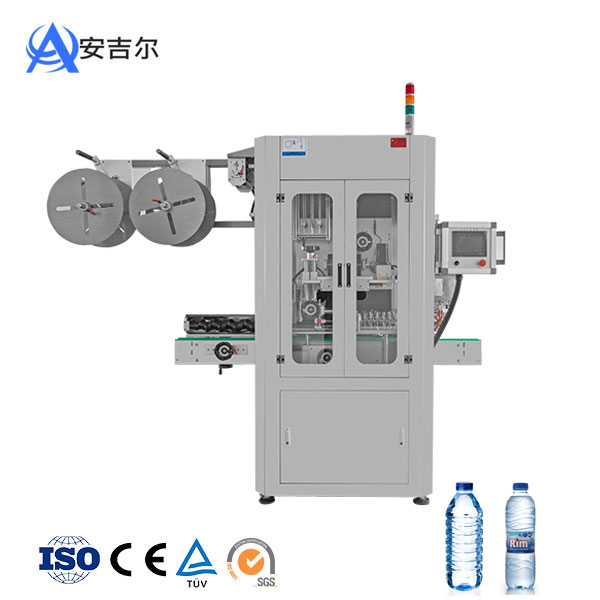

  • 1.Automatic Bottle Sleeve Labeling Machine
    Function:
    All-cover type stainless steel host machine: The whole machine is waterproof as well as rustless.

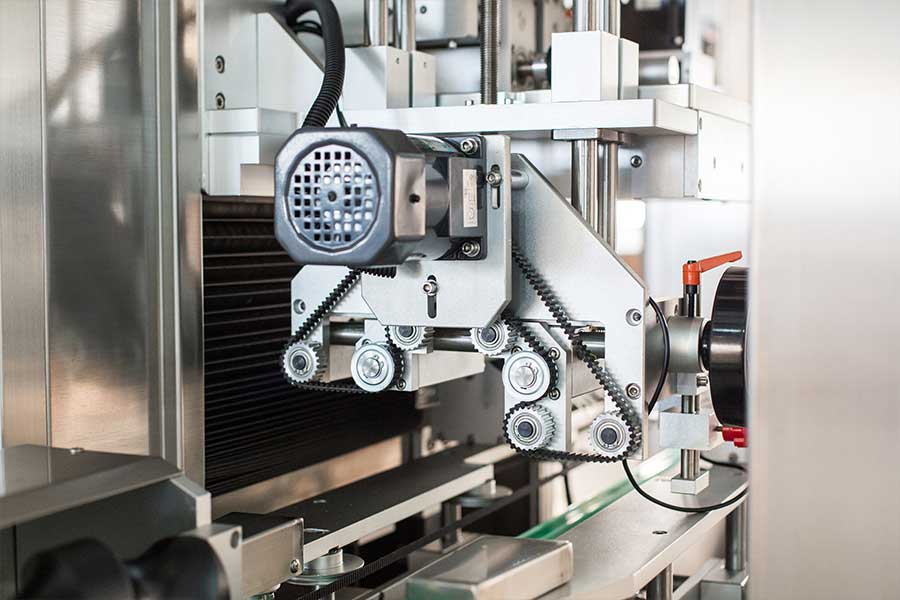

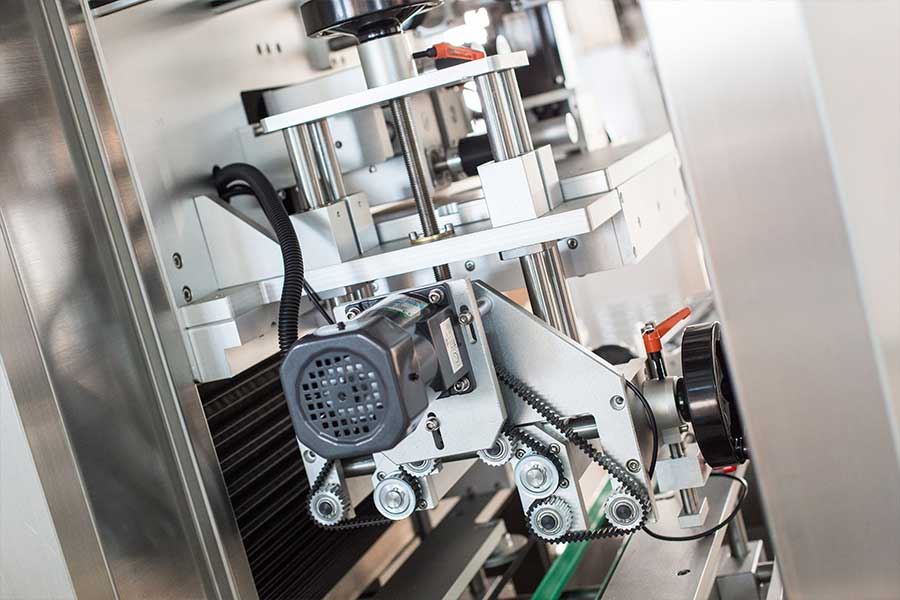

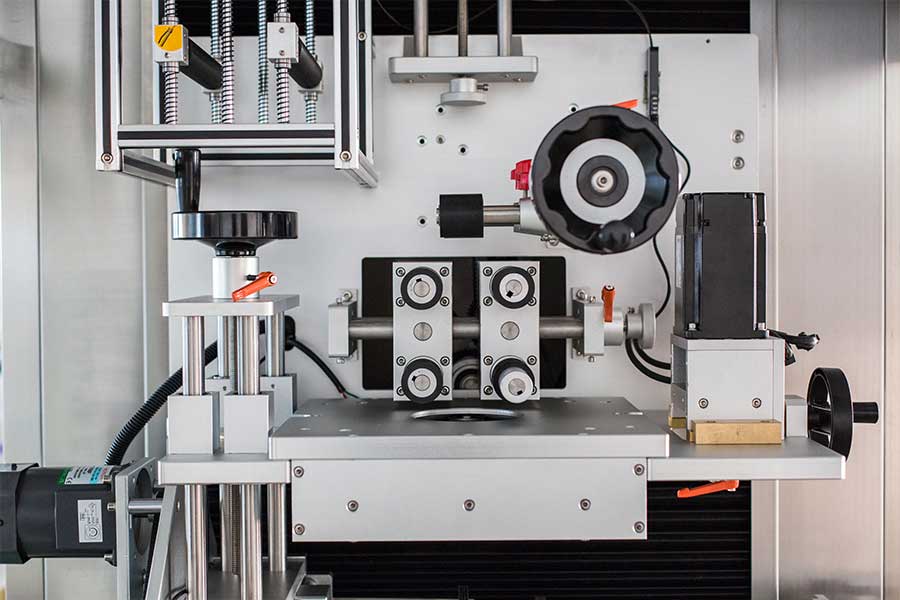

    Adjustable cutter head: Uniquely cyclotron cut-off, double sided cutting edge with a long service life.

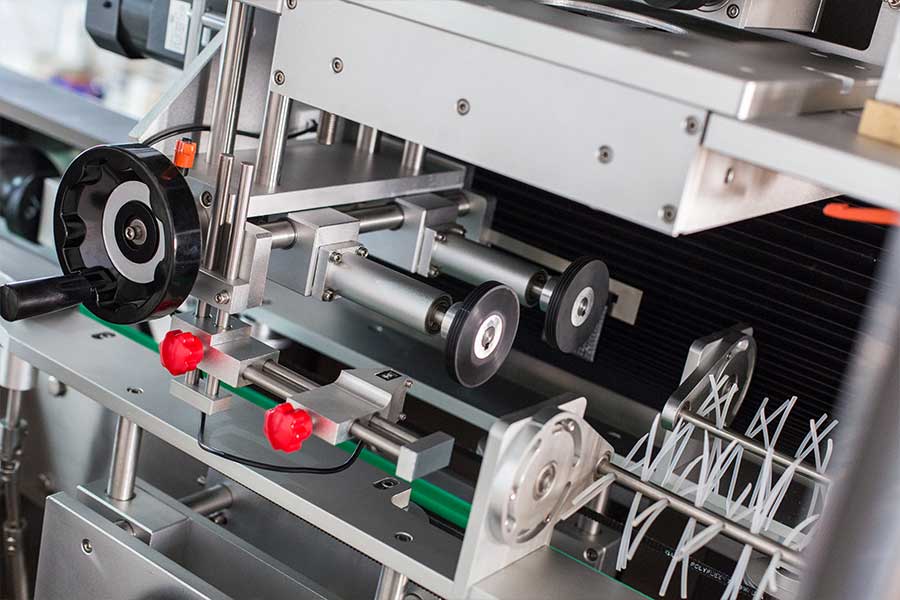

    Single positioning centre guide pillar: A more stable for label delivery.
    Synchronous bottle divider: A more stable transmission for bottle.

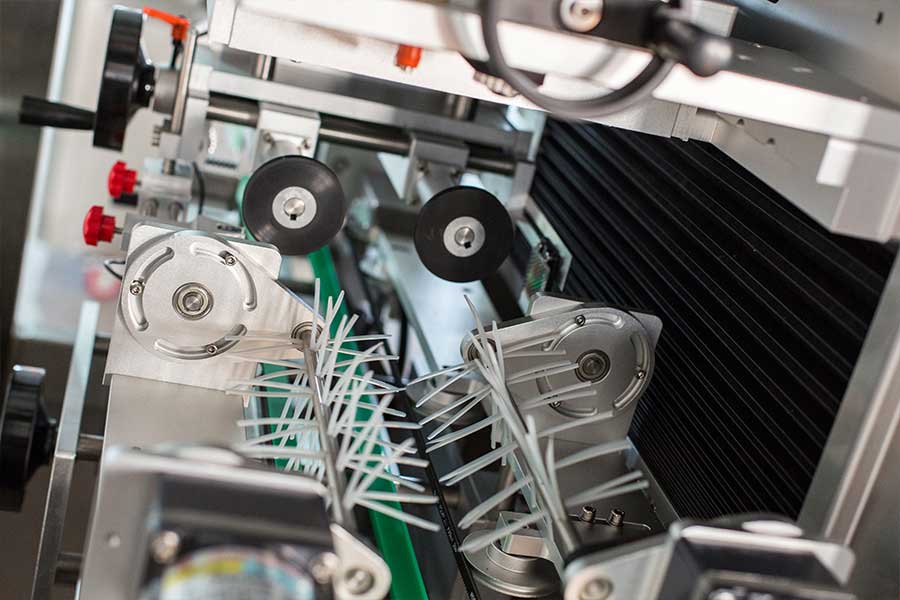

    Bottom set of label brush: A more precision for casting label.
    Label-controlling electric-eye shelf: Unique combination of tail and electric-eye to improve the precision for cutting off The membrane materials.
    Push-button control cabinet: A more humanized operation.
    Independent feeding material shelf: The position of the material shelf is optional at will.
    Electrical Appliance Configuration Specification:
    It adopts PLC programmable controller, imported servo motor, servo driver, frequency converter and transducer; Besides, it dopts The positioning module to ensure the casting label precise, rapid and stable.
    Applicable Bottle Types:
    Various kinds of bottle types, for example: Round bottle, square bottle, flat bottle, curved bottle and cup-shaped, etc.
    Technical parameter:

    Model

    SHX-150

    SHX-250

    lnput power

    1.5KW

    3.0KW

    lnput Voltage

    Ф3380/220VAC

    Ф3380/220VAC

    Production Efficiency

    150Bottle/min

    250Bottle/min

    Size of Host Machine

    2100L x 850KW x 2000H

    2100L x 850KW x 2000H

    Applicable Diameter of Botle Body

    Ф28mm-Ф125mm

    Ф28mm-Ф125mm

    Applicable Thickness of Label

    30mm-250mm

    30mm-250mm

    Applicable Length of Lable Tube

    0.03mm-0.13mm

    0.03mm-0.13mm

    Applicable lnternal Diameter of Paper Tube

    5"-10" (Adjustable)

    5"-10" (Adjustable)



    2.Shrink Tunnel

    In the case of different and irregular round bottles, square bottles and flat bottles etc, the new-style steam shrinking oven is easy to adjust and maintain. It has an even shrinking. The distribution of Iow-pressure steam drum and spouting way of steam are uniform and designed with seamless tube. The nozzle is divided to be adjustable three segments and the height, position and steam output of every segment can be adjusted respectively so as to gain the perfect shrinking effect. The whole machine is made of stainless steel with heat preservation, which not only saves energy, but also complies with the international safety standard. The stainless steel defrosting tray collects condense water. The whole machine adopts the water-proof design with the convenience of easy operation and low maintenance.
    Special Manufacture
    Based on the original configuration, double layer holding furnace is manufactured to take effect on energy saving and environmental protection.

    Input Power Supply of Blower

    1 220VAC 1.1KW

    Working Pressure

    0.1Mpa

    Weight

    230Kg

    Steam Consumption

    10-20Kg/h

    Size of Oven Body

    L2300mm x W400mm x H450mm

    Transporting Speed

    0-35m/min



    3.Steam generator

      The water is fed into the series of wholly automatic electrical heating generator by high pressure potential vortex pump made of copper with short water-supply time and durable service. A floating ball for liquid level is fixed in the water tank to automatically control the water inlet. Working system is all automatically controlled. After connecting the water supply and power supply for 5 minutes or so, it can output the steam continuously with a high level of working efficiency.

    Project

    Unit

    Specification

    Steam capacity

    kg/hr

    50

    Input power

    KW

    36

    Rated working pressure

    Bar

    7

    Saturated Steam Temperature

    °C

    170

    Efficiency

    /

    98%

    Power source-Voltage

    /

    As customer required

    Main steam valve diameter

    DN

    15

    Safety valve diameter

    DN

    15

    Water inlet  diameter

    DN

    15

    Blow down valve caliber

    DN

    15

    Overall dimension(L*W*H)

    mm

    680*600*1060

    Weight

    Kg

    130

    We can provide customized products for specific power supply in the world.
