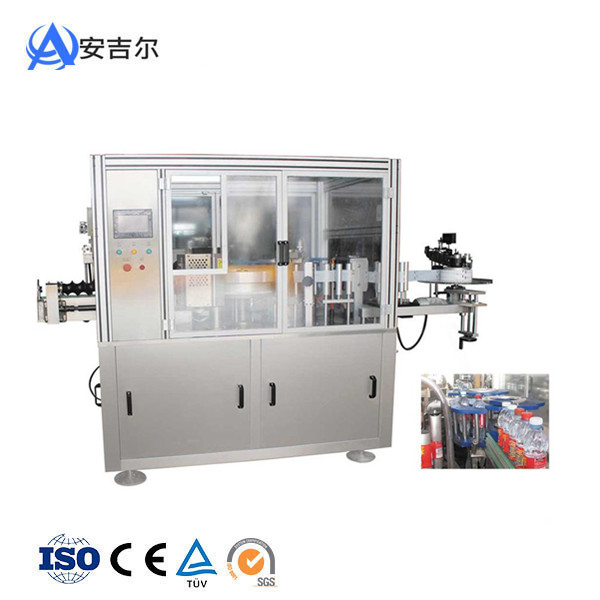

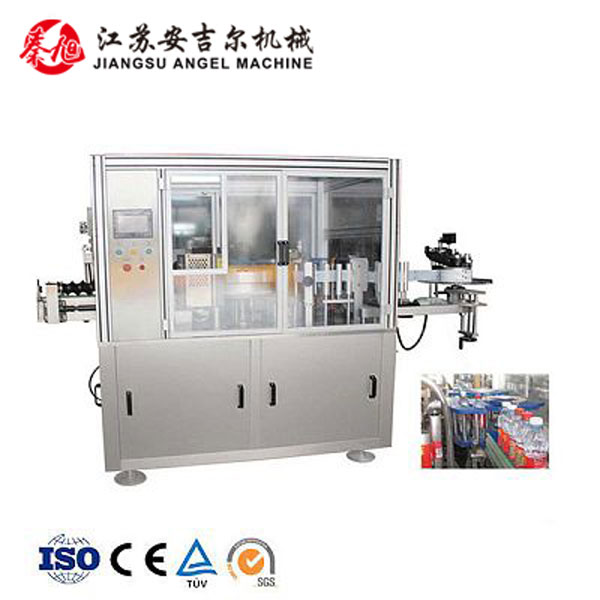

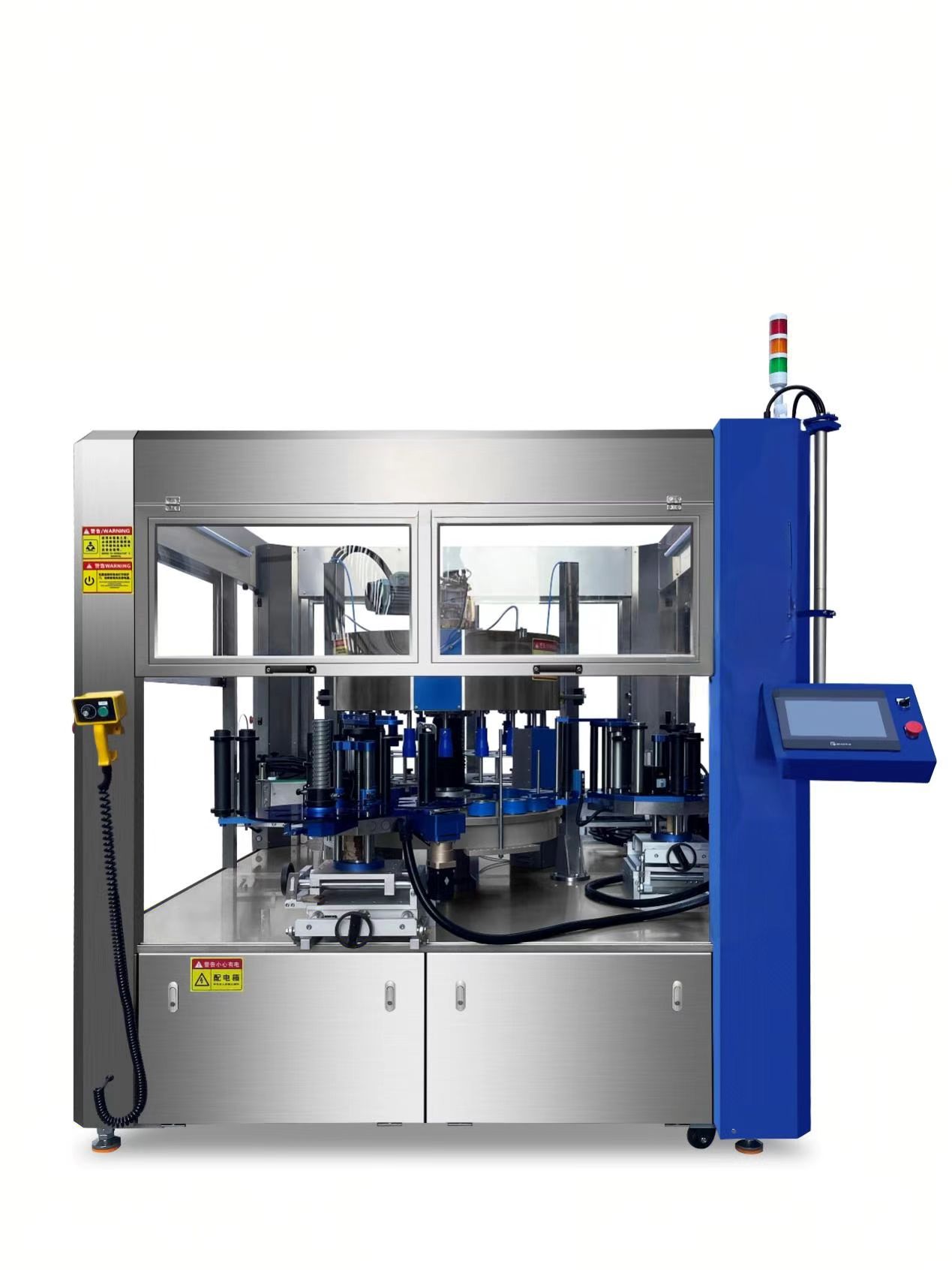

OPP热熔胶贴标机

热熔胶贴标机是一种能够填补国内外贴标市场所需的先进设备。有卧式、立式两种机型。具有结构合理,占地少,表面大量选用不锈钢及非金属材料之特点。广泛应用于气雾罐、镭射膜贴标、OPP贴标。适用于食品饮料、矿泉水、洗洁精、农药化工、医疗保健、灭蚊蝇杀虫剂、空气清新剂、以及各种圆柱瓶型或方型瓶的贴标需求。

该机器采用光电检测,具有贴标准确,精确度高的优点,同时具有无瓶不贴标,贴标,自动校正、纠偏、自动检测等功能,还可与喷码机配合,实现连续准确的贴标特点。


  • 1. 品名:热熔胶贴标机

    贴标方式:圆周贴标

    使用胶型:热熔胶

    1.1).商标切割刀片调整容

    1.2).眞空吸标轮采用高硬度材质制成;添加的褶皱处理程序可減少商标摩擦, 防止静电产生

    1.3).更換兼容件的工作可在5分钟內快捷高效地完成

    1.4).可利用手动操作盘精确而又方便地调整好刀片位置

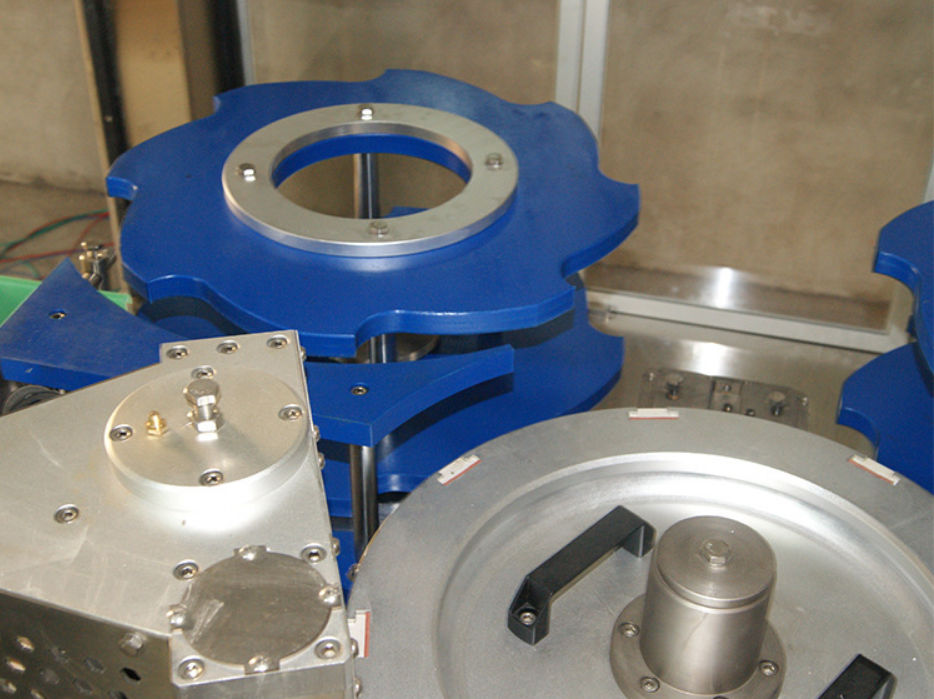

    1.5).眞空吸标轮及商标切割部位下部采用耐磨损防发热的特殊材质制成

    2.使用商标

    ①标签材质:OPP(轮式)

    ②标签规格:参照用户要求

    ③贴标方式:直线式热熔胶贴标

    3.设备说明

    3.1)采用轮式贴标方式

    3.2)由标签卷输送而来的标签经由供标轮沿导轨运行进行贴标作业

    3.3) 标签经过供标轮时,传感器自动检测I-MARK

    3.4)一旦确认电子眼位置,解调器自动调整供标轮作业速度,然后正确无误地指定切标位置

    3.5)标签经过供标轮后进入剪切部进行切标作业,然后将切好的标签送入真空吸盘

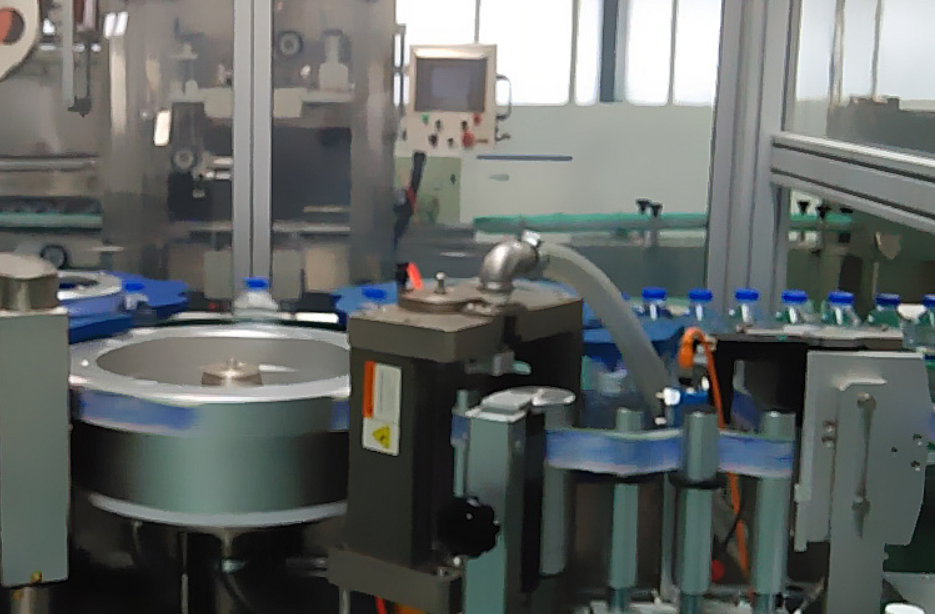

    3.6) 由输送带输送而来的容器经供给星轮进行适当排列后,涂胶后的标签在辊道区进行第

    一次贴标,然后依靠同步带的作用进而进行完善的贴标作业.

    3.7)机器的涂胶、切刀和取标吸鼓位置可以整体调节,对于同种瓶型不同位置可不换模具直接生产。

    4. 装置说明

    4.1)控制:运动控制器,伺服驱动器,变频器

    4.2)安全裝置

    ①驱动部设有超负荷运转保护装置

    ②供給星轮异常状态终止装置

    ③无甁供給检测装置

    ④供甁过负荷检测装置




  • 设备名称

    全自动直线式热熔胶贴标机

    机器型号

    JL-02-4P

    主电机功率

    2.2KW

    主电机品牌

    OMITER

    控制器

    Schneider

    伺服电机

    Schneider 1.5KW

    PLC模块

    Schneider

    传感器

    SICK  Schneider  Panasonic

    编码器

    SICK

    低压电器

    Schneider

    电压

    380V±10

    频率

    50HZ

    整机功率

    8KW

    贴标类型

    单周身标

    适合瓶型

    圆瓶 40-100mm,高=80-350MM

    标签尺寸

    125-325mm,高20-190mm

    涂胶方式

    滚涂(标签头尾两端约各10mm

    使用标签方式

    卷标

    产能

    18000/小时(圆形瓶)



    压缩空气压力

    MIN5.0bar  MAX8.0bar

    压缩空气消耗量

    0.2M³/分钟

    整机重量

    2500kg

    机器外形尺寸

    L=3050 W=1718 H=2080


  • 4521376201_1653749200.jpg_-wps图片.jpg




    在市场竞争日益激烈的今天,企业需要有优势的技术,客户需要有物美价廉的产品 ,除此之外,服务也是让我们在竞争中立于不败之地的法宝。能否赢得客户,不仅是企业的产品质量,产品的价格等方面的问题,服务也是一个关键因素。所以真正 关注客户需求应是我们安吉尔服务的起点,满足客户需求才是我们安吉尔服务的目的。
    张家港市安吉尔机械有限公司将为您提供最优质的售后服务:

    ■ 售后服务细则
    1、服务项目:
    ①设备安装与调试 ②操作培训 ③运行维护 ④使用咨询 ⑤产品保修 ⑥应用交流

    ■ 操作培训
    培训内容:设备操作的基础知识、安全正确使用等
    培训方式:采用上门个别指导方式和到公司集中培训相结合

    ■ 运行维护
    1、维护服务内容: 设备使用过程中,如出现问题,及时上门维护、修理。
    2、维护服务方式: 热线电话或信函服务、用户上门接受服务、服务人员上门提供服务。

    ■ 咨询服务
    咨询服务是指向合法用户提供设备应用过程中不明事项的指导和应用咨询。

    ■ 产品保修
    在购买产品起一年内提供保修。

    ■ 应用交流
    为提高用户应用水平,加强迅捷公司与用户之间的合作,由迅捷公司与用户协会定期举办真空旋盖机应用交流活动,和用户进行应用交流。

    ■ 服务宗旨
    高效、勤勉、诚信、满意
    以用户为中心,提供快捷、优质的服务,不断加强产品服务管理,建立更完善的服务体系。以诚为本,服务用户。用户的满意是张家港市安吉尔机械有限公司永无止境的追求。
    安装调试与运行
    1
    .货到后由供方派谴技术人员在买方的协助下负责完成设备的安装及调试至正常运行。
    2.供方负责完成对用户2-3名人员进行操作、维护方面的培训。
    售后与技术支持:
    1.供应商负责终身维护。免费保修期壹年,自设备验收之日起计算。此期间内设备出现故障及机件损坏(人为因素及不可抗力因素除外),供方免费修复。
    2.免费保修期后供方提供设备零件部件及相关的备件另收成本费。
    3.供方每年进行两次回访,并随时提供技术支持与服务。
    4.设备运行中出现难以解决的问题,接到报修电话后1小时内回复,24小时内到达现场。
